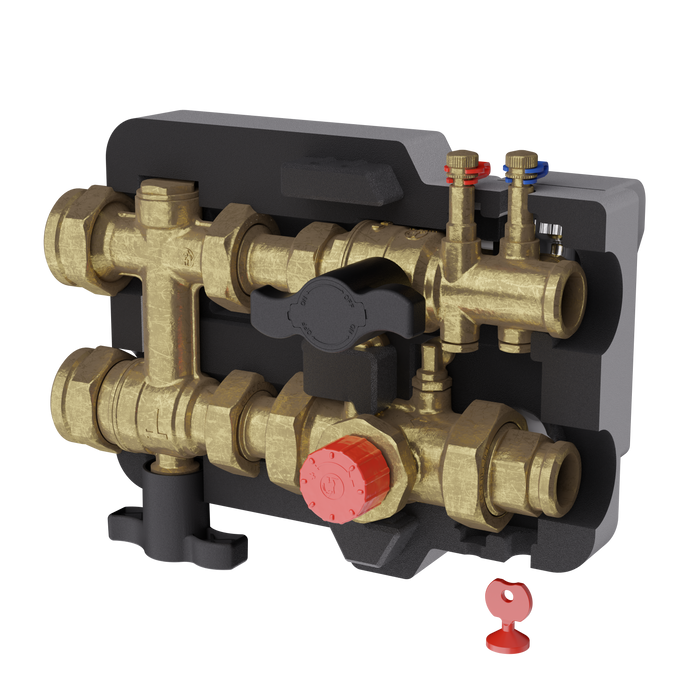

R280KC-1 Compact Preassembled Kit for Terminal Units
Price includes VAT
In stock items - delivery 1-3 days
lead - time 10-14 days from italy 🇮🇹
GIA-Connect > Compact Preassembled Kit for Terminal Units
Preassembled compact kit, "Premium" version, combining the components required for balancing, control, flushing and commissioning of HVAC terminal units (fan coils, chilled beams, etc.) with the main distribution network.
Setting range of unit flow rate: 35-1500 l/h Max. working pressure: 25 bar. Range of operation nominal Δp 25-800 kPa. Working temperature range -10-120°C.
Room temperature range 1-50°C. Filtering capacity of filter: 500μm. Fluids: water and glycol-based solutions (max. 50% of glycol). Main brass components CW617N - UNI EN 12165. Ball valve gaskets PTFE. Gaskets of other components EPDM. AISI 304 stainless steel filter.
Temperature range: 5÷120 °C.
Max. working pressure: 25 bar.
Working differential pressure range: 25÷400 kPa or 25÷800 kPa depending on the installed actuator.
Actuator connection: M30 x 1,5 mm.
Main components in EN 12165 CW617N brass or EN 12165 CW602N (DZR) brass.
