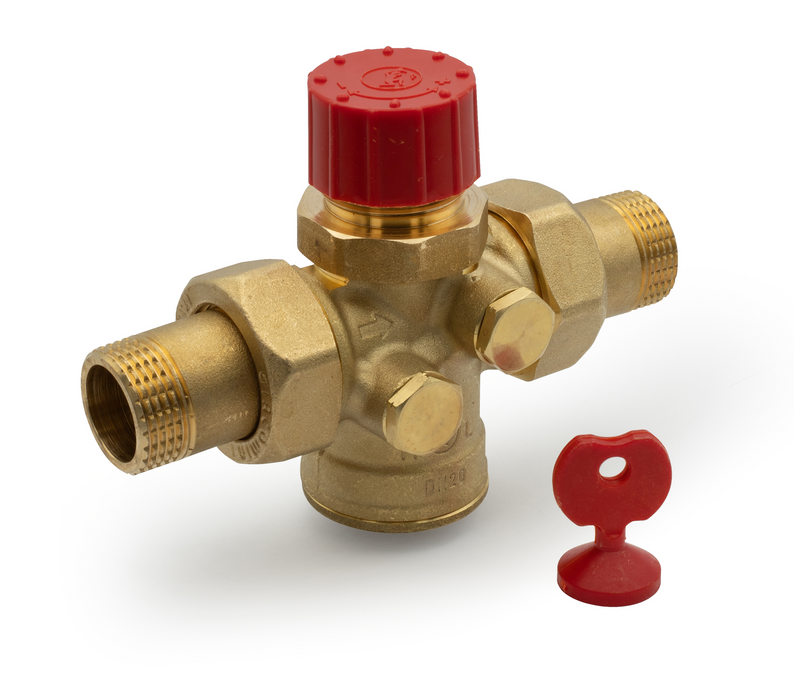

R206A Pressure independent control valve (PICV)
Price includes VAT
In stock items - delivery 1-3 days
lead - time 10-14 days from italy 🇮🇹
Pressure independent control valve (PICV).
Combines an automatic control of the flow rate with an optional control of the valve through an actuator.
The valve is able to regulate the flow rate and keep it constant as the differential pressure conditions vary within the hydraulic circuit in which it is installed.
The valve can be used with two operating modes:
- independent control of the pressure (with K281 actuator installed) in accordance with the thermal load requirements of the circuit section to be controlled;
- limitation of the flow rate and/or shut-off of the fluid (without actuator or with R473 thermo-electric actuator installed).
Flow rate adjustment is guaranteed within the declared differential pressure range, with a maintained error of ± 10% on the controlled flow rate value.
The valve is equipped with pressure ports for measuring the differential pressure in combination with a differential pressure gauge and its own probes.
R73PY010 setting key for flow rate presetting included.
