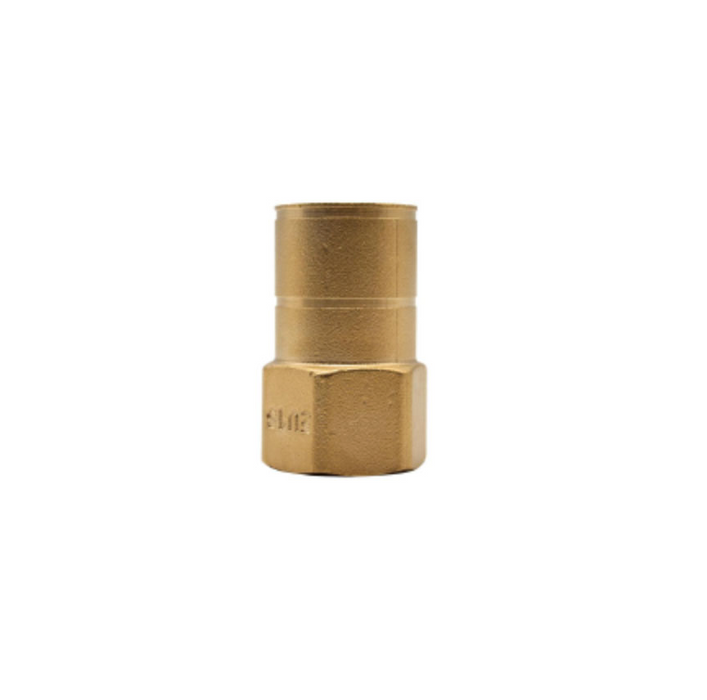

EuroTis ePress to female thread

The press fitting system summarizes the best traditions of reliability, formability and safety of Eurotis’ PLT-CSST corrugated tubes with the practicality and installation speed of the ePRESS Technology.

Suitable for all standard 32 kN

NovoPress 36/ NovoPress 203 / Rothenberger ROMAX 4000 / ACO 203

QUICK AND EASY TO INSTALL

It’s possible to manually bend the PLT-CSST tube without using other tools. This is possible thanks to the specific morphology of the corrugations and to a minimum thickness of 0.3 mm which give the tube the maximum performance during bending.

MAXIMUM SAFETY

The mechanical tightness consists of two pressing points.
1st point deforms the entrance of the fitting where there is a “tooth” which, after pressing, locks the tube and inserts itself in the last corrugation preventing it from slipping off.
2st pressing point deforms the gasket, allowing it to penetrate into the corrugations of the PLT-CSST tube and ensuring a secure and lasting seal.

UNIQUE AND PATENTED

The ePRESS technology is entirely designed by Eurotis; this project led to the creation of a new jaw with “E” profile which allows a controlled deformation of the fitting and gasket ensuring the seal.
Moreover, thanks to the special “saddle”, the correct positioning of the fitting is guaranteed and the pressing is extremely simple and immediate, reducing the possibility of errors during installation.
