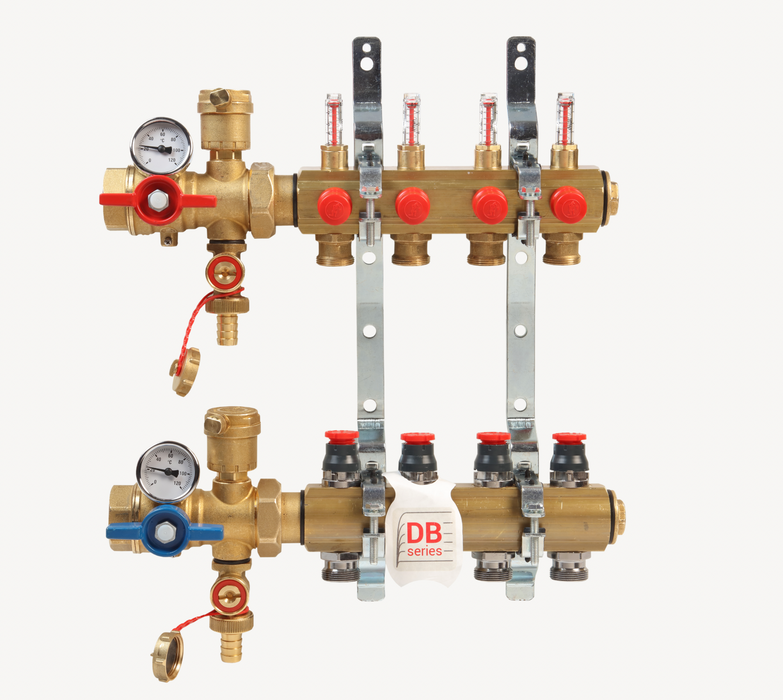

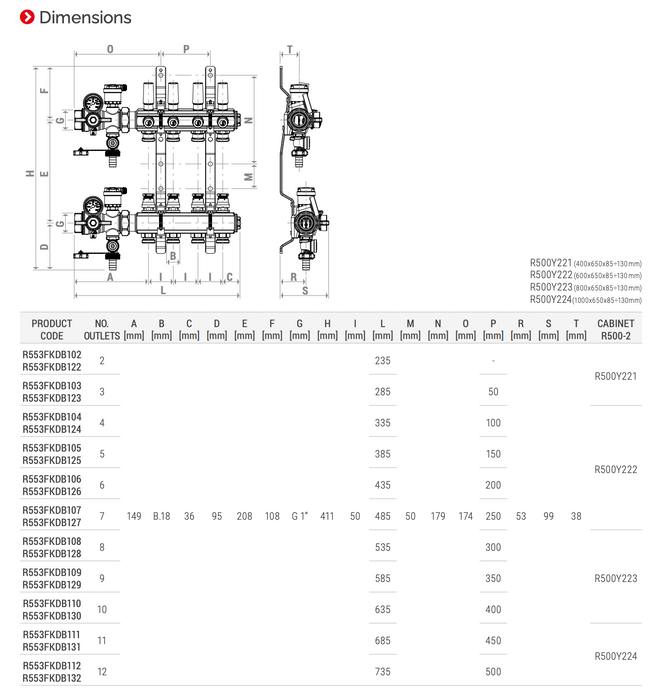

R553FKDB Brass manifold with dynamic flow balancing
Price includes VAT
Delivery time
In stock products - 48hr delivery
Pre-order products - 2-3 week delivery
Brass manifold for HVAC systems with dynamic flow balancing and independent setting for each individual circuit.
Outlets connections for copper, plastic or multilayer pipe adapters.
Center distance between the outlets 50 mm.
Temperature range 5÷95 °C.
Max. working pressure 10 bar.
Flow rate setting range for each individual circuit: 20÷160 l/h (LF)
Working differential pressure range: 20÷60 kPa (LF)
Flow meters: scale 0,4÷2,6 l/min (LF)
The kit includes:
- delivery manifold with flow meters and lockshields for fluid shut-off function;
- return manifold with dynamic flow balancing valves and manual handwheel, pre-arranged for thermo-electric command via R473/R473M actuators;
- pair of R269T multifunction valves with end plugs;
- R588Z metal brackets;
- R558Y001 key for lockshields shut-off;
- R73PY010 key for presetting.
- R500-2: flush-mounting metal cabinet, with adjustable depth.
- R473, R473M: normally closed thermo-electric actuators equipped with R453Y002 plastic ring nut.
- R178, R179, R179AM: B.18 adaptors.
Spare parts
- P12ADBX001: low Flow bonnet with dynamic balancing (red internal membrane).
- P78MY002: flow meter with scale 0,4÷2,6 l/min.
- P78MY001: flow meter with scale 0,5÷5 l/min.
- R453Y002: plastic ring nut for thermo-electric actuators installation.
- R588ZY001: metal bracket with supports.
- R73PY010: regulation key for presetting.
